Esholt WWTW, Bradford | Yorkshire Water
2x Silos
Cleaned
4
Days completed in
£15,000
Contract Value
Project Overview
LOCATION
Esholt WWTW, Bradford
SCOPE
MRMS successfully excavated 130 m³ of cake from 2 blocked silos at Esholt WWTW within 4 days of emergency mobilisation – fully cleaning the silos, clearing the screw shafts, and enabling Yorkshire Water’s repair contractor to complete all works on programme.
PROGRAMME
4 days
CONTRACT VALUE
£15,000
Method of Works
Emergency Overnight Mobilisation
Lowloader with specialist grab and tractor trailers mobilised on Friday night for an early-start Saturday morning response.

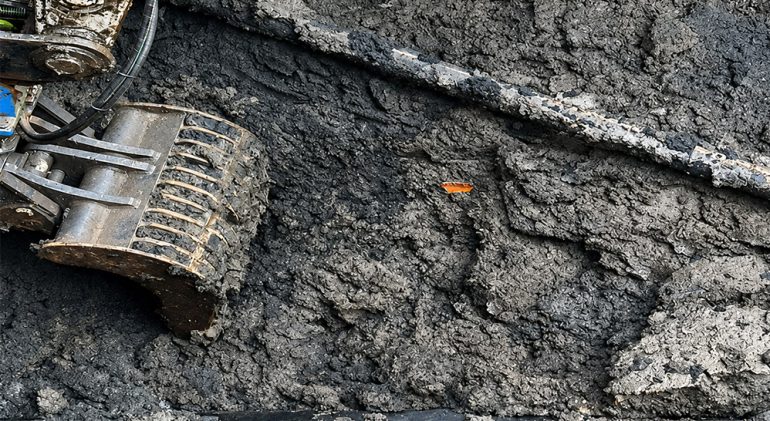

Grab Cake Extraction
Specialist grab used to extract cake from within the tight HGV tipping access through to the top of the silo, loading directly into tractor trailers.
Cake Haulage to Conditioning Pad
Loaded trailers transported cake to the conditioning pad at the far end of the site for disposal and treatment.

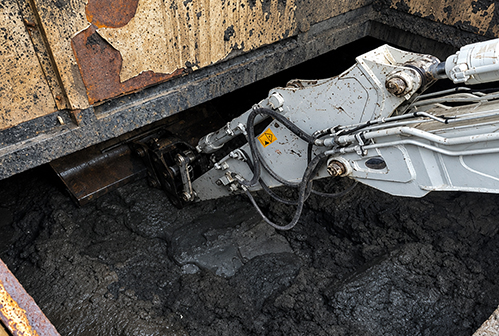

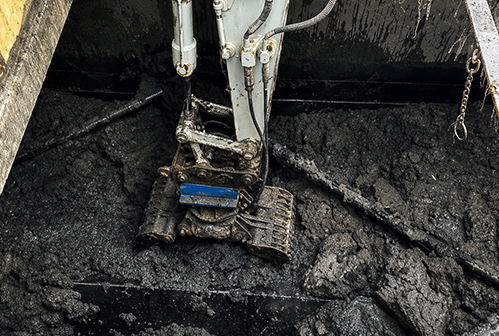

Specialist Grab for Deep Clearance
Specialist grab attachment used to clear cake from between silo strengthening supports and within the bottom divided screw shaft chambers.
Recycler Jet Wash & Clean Down
Recycler unit deployed to jet and dilute remaining cake, washing down and around all screw shafts to prepare silos for repair works.
Site photography
Key Challenges & Highlights
Rapid Emergency Response
Works were instructed on a Friday and required overnight mobilisation of a full equipment train – specialist grab, tractor trailers and recycler – to be set up and operational by Saturday morning.
Extremely Confined Working Conditions
The tight HGV tipping access above the silo and the narrow internal chambers severely restricted plant manoeuvring. The specialist grab was essential to reach material within the strengthening supports and screw shaft divisions.
Confined Space Excavation
Working deep within the cake silos required the specialist grab to clear blocked material without damaging the silo structure or screw shaft mechanisms.
130 m³
Cake
Removed
2 Silos
Fully
Cleaned
4 days
Programme
Delivered
£15k
Contract
Value
