Culvert Cleaning & CCTV Survey | Kier NR&N
50m
Culvert Length
8
Days completed in
£19,490
Contract Value
Project Overview
LOCATION
Whitchurch, SY13 1RS
SCOPE
Culvert cleaning and CCTV survey following a major breach on the Llangollen Canal, restoring drainage and assessing structural condition.
PROGRAMME
8 weeks
CONTRACT VALUE
£19,490
Method of Works

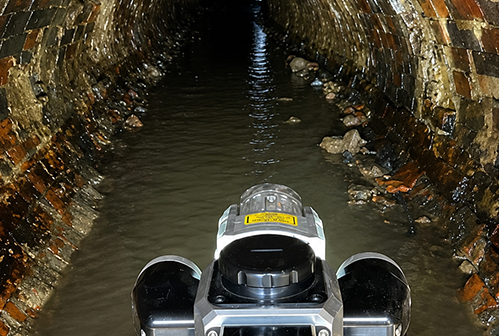

Culvert Clean & CCTV
~50m of 1200mm x 1200mm brick culvert cleaned and surveyed to full WRc standard

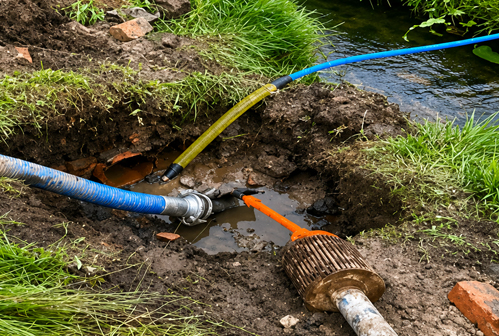

Downstream Twin Pipes
~33m of twin 225mm clay pipes cleaned and CCTV completed (Stage 2)

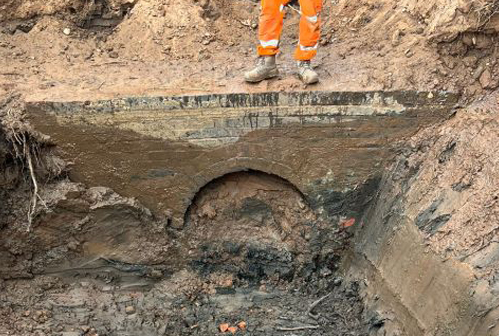

100% Silt Removal
All pipes 100% full of debris due to the breach – finished silt levels reduced to less than 10%

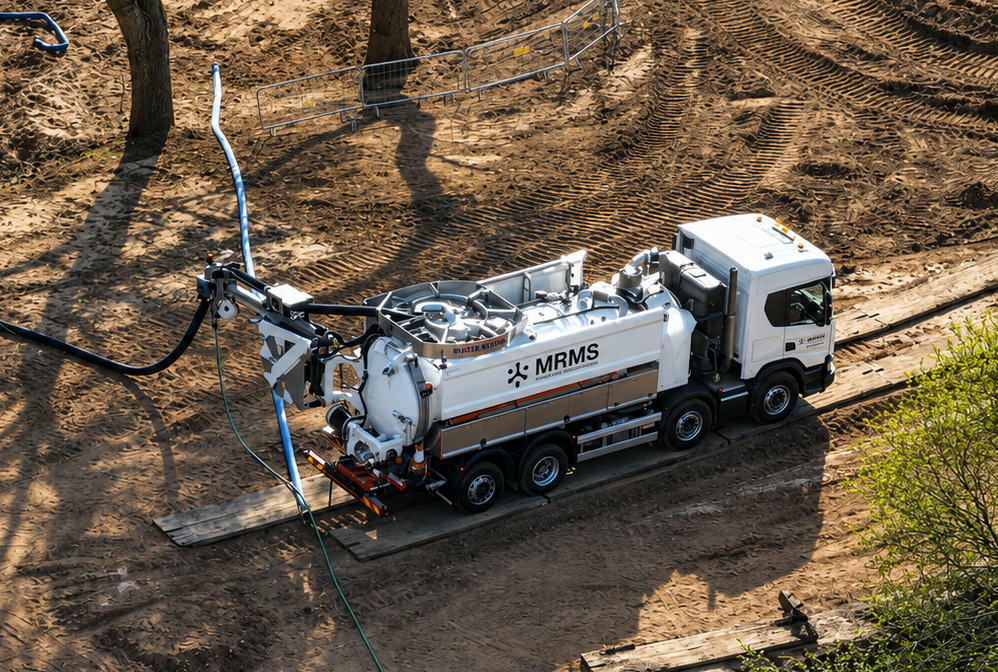

Portable Equipment Deployed
Material stockpiled at End B and loaded into 20-tonne haulage lorries for disposal.
Key Challenges & Highlights
Difficult Access

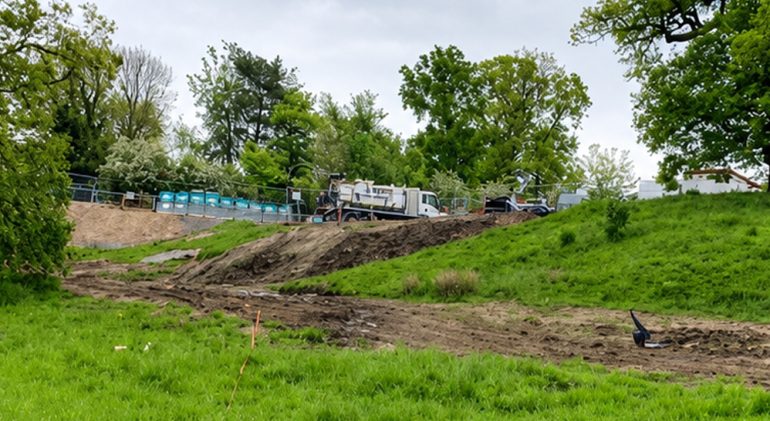

Inlet side became a sand pit from the canal breach. Outlet accessed via active plant track across wet farmland, requiring full portable setup.
Live Site Co-ordination
Works ran in tandem with ongoing major earthmoving operations, requiring continuous programme co-ordination to keep both scopes on track.
Technical Complexity
Culvert location and 100% silt blockage required multiple equipment configurations and expert planning to safely clean and survey.
Site photography
Project Summary
Delivered On Time. On Budget. To Specification
Culvert cleaned, CCTV completed, and drainage restored – allowing water to drain naturally off the field and the watercourse to function as intended.
50m
Culvert
Cleaned
33m
Twin Pipes Cleaned
8 days
Programme
Delivered
<10%
Final Silt
Level
