Trenchless Drain Repair Services

MRMS > Trenchless Drain Repair Services

Trenchless sewer repair, also known as no-dig drain repair, is now the most common method for fixing pipework due to its relatively quick turnaround with minimal disruption. This reliable technique offers low environmental impact and long-term cost-effectiveness. Unlike traditional pipe replacement, which requires extensive excavation to replace faulty sections, trenchless solutions allow for repairs to be made without the time, inconvenience, and expense of digging.

The trenchless approach utilises the Cured-in-Place-Pipe (CIPP) method. Essentially, this involves feeding a textile-based liner tube impregnated with resin into the damaged pipe section from an upstream insertion point. The resin is then cured or hardened to form a new pipe wall that is fitted, smooth, and resistant to corrosion, giving the repair a long shelf life.

MRMS CIPP Trenchless Repair Solutions

Our team of skilled engineers is fully experienced in delivering trenchless sewer repair services to the highest standards. Our trenchless solutions typically involve the following stages to ensure quick, efficient, and long-lasting repairs with minimal disruption:

Trenchless stage01 survey

CCTV Inspection

A CCTV condition survey of the pipe sections identifies where drain repair is needed and our team then advises on the most effective solution, both in terms of method and costs.

Trenchless stage02 jetting

Debris & Root Removal

Debris, blockage or tree roots in the pipe are cleared to prepare the pipe sections for repair. We use both high-speed cutters and Ultra High Pressure (UHP) water jetters to clear and cut the roots.

Trenchless stage03 liningv2

Wet-Out Stage

This stage involves the process of impregnating a textile liner tube with the resin mixture. The liner is usually made from polyester, fibreglass cloth, carbon fibre or another resin-impregnable material.

Trenchless stage04 inversion V2

Inversion

The liner tube is inverted into the pipe section via an upstream access point such as a manhole. Air pressure is then applied, expanding the tube to fill the pipe. The resin is forced to the outside and sticks to the existing pipe wall.

Trenchless stage05 curingv3

Curing

The resin is cured, or hardened, via a few different methods including ambient, hot water, steam or light-curing (UV and LED). This hardening of the resin creates a fitted, smooth and corrosion-resistant new pipe wall.

Trenchless stage06 reconnection v2

Reconnection

If during the process of relining it was necessary to cover over any branch line openings in the pipe works, robotic or UHP water jetters are utilised to re-establish the pipe connections.

Bluelight CIPP

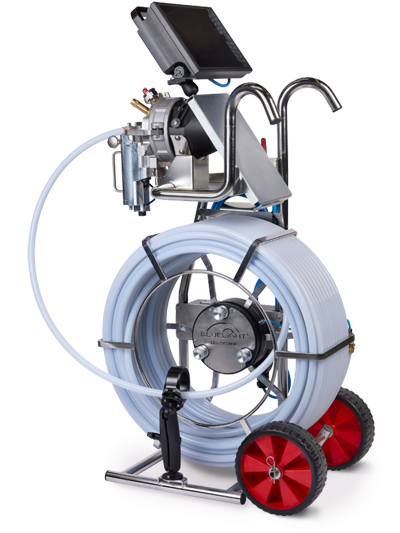

In keeping with the MRMS culture, our trenchless sewer repair division utilises the latest technology to lower environmental impact, minimise disruption, and save on long-term costs. Bluelight CIPP is a cutting-edge trenchless solution that uses blue light LEDs to cure the pipe lining.

Blue light has a short wavelength, allowing for more time between the wetting out and curing stages by reducing the possibility of premature hardening. The high-intensity light provides a deeper and more complete cure, with significantly faster curing times—a 50-foot sewer line could be fully cured in under 10 minutes using this method.

To find out more about our Bluelight CIPP system and its many advantages over more traditional CIPP methods, read our article on the subject.

bluelight reel

6 Advantages of CIPP Trenchless Repair

Much Less Disruptive

Trenchless methods mean no need for messy digging and large vehicles significantly reducing public street access. The job can be completed in as little as a day (when using UV curing), instead of weeks under traditional methods.

Less Expensive

Although the textile liners are more expensive than traditional pipework, the costs are more than outweighed by the significant reduction in manpower and equipment required by excavation methods.

Longer Lasting

A properly maintained trenchless sewer repair will last 50 to 60 years, with the resin liner sealing and protecting the sewer system from further deterioration, providing significant maintenance cost savings.

Safer

Reduced excavation areas lower the risk of accidents and injuries associated with open trenches and heavy machinery, enhancing overall site safety for both engineers and the public.

Improved Performance

In addition to longer life expectancy, the trenchless repair solution improves functionality by increasing flow capacity and reducing the issues associated with invasive root growth and debris build-up.

Eco-Friendly

Excavation disrupts local ecosystems and destroys vital plants and habitats. By accessing through manholes, trenchless solutions avoid this, making them a more environmentally friendly option.
